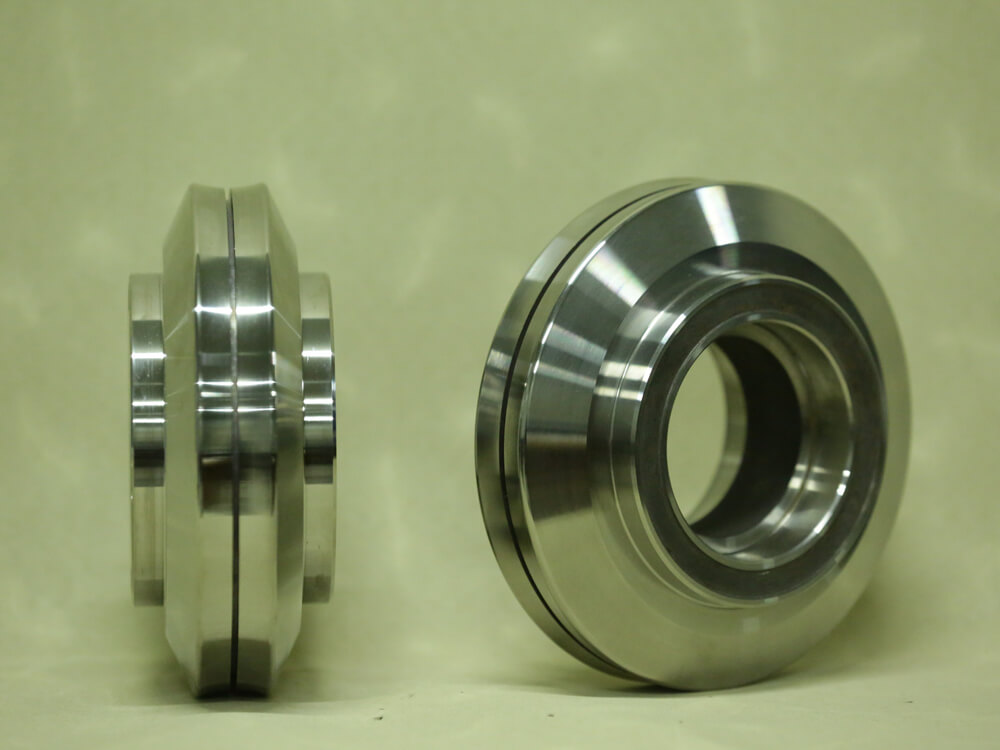

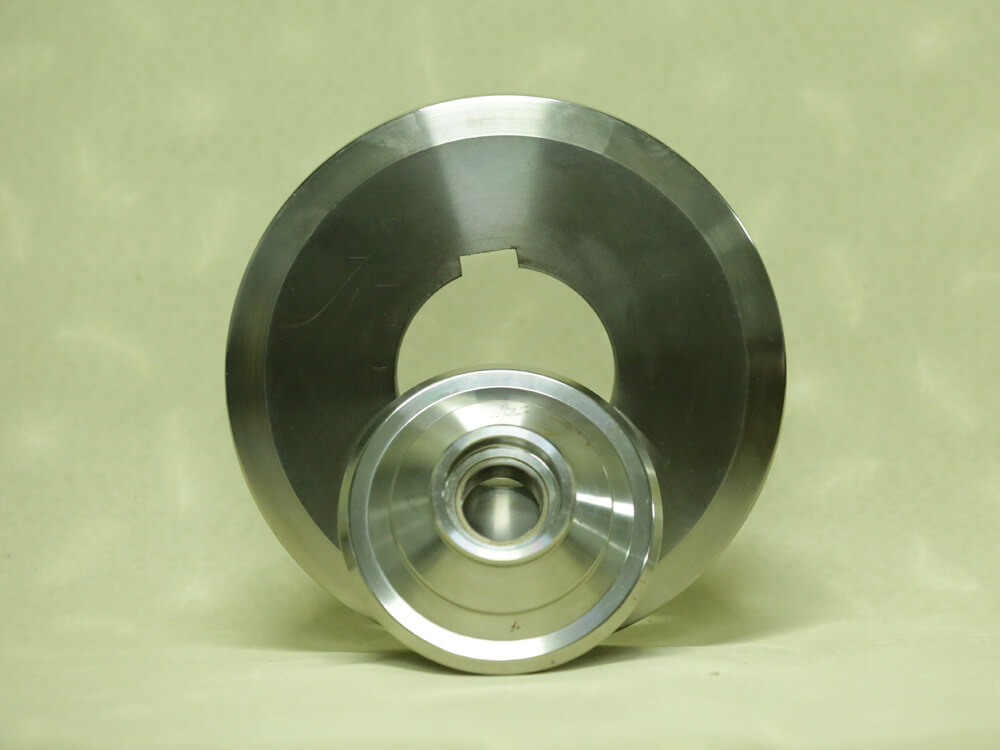

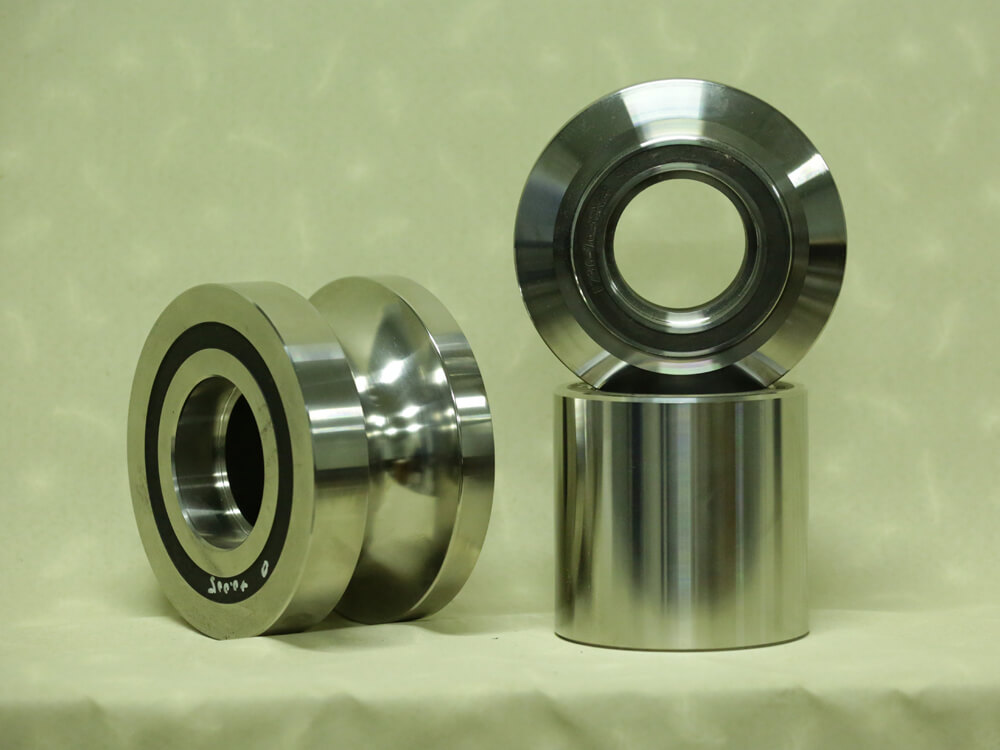

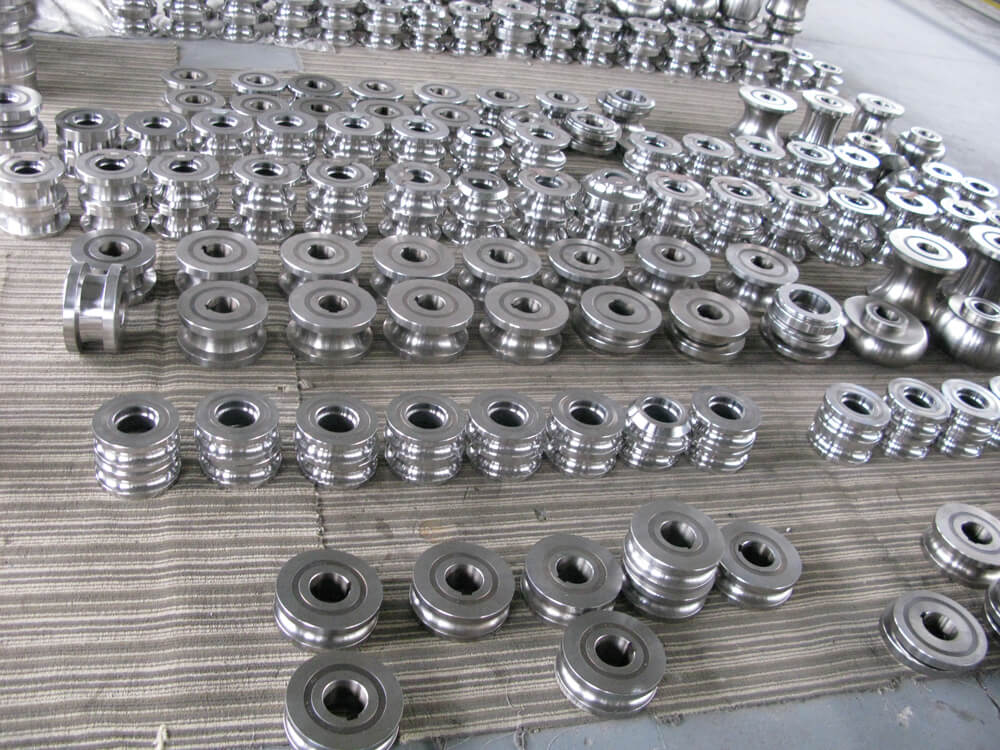

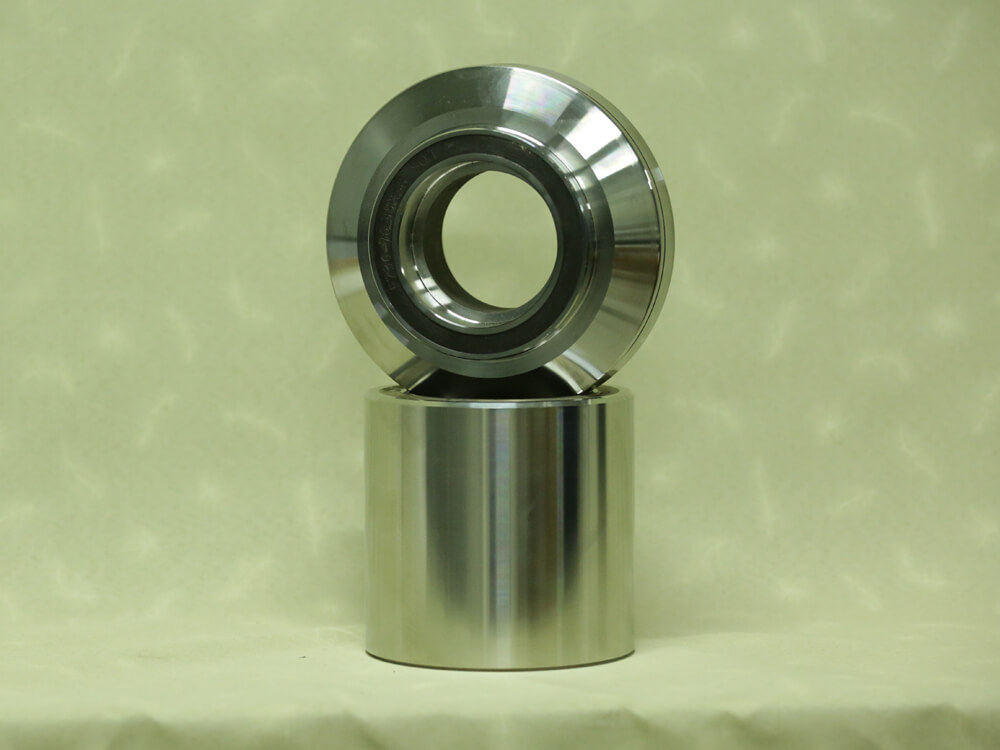

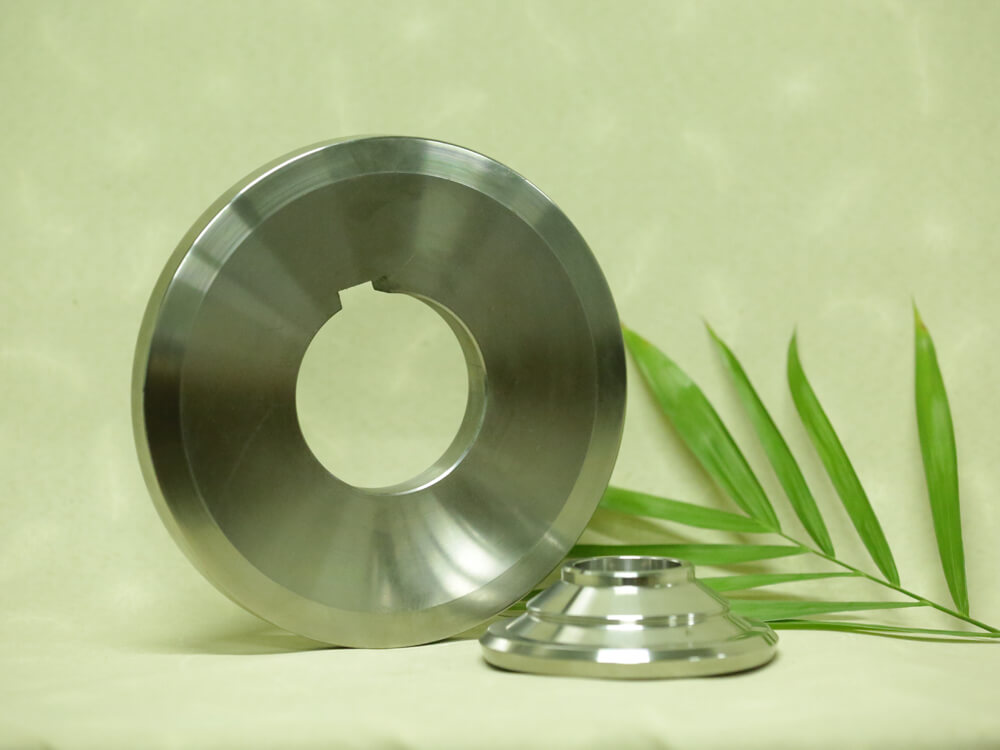

Tube Mill Roller
Previous
Next
Key Attributes
Product Name | tube mill roller |
Shaping Mode | Forging Mould |
Model | Rould/Square/cold roll forming |
Material | Cr12Mov/SKD11/Cr12/GCr15/9Cr2Mo/3Cr2W8V/H13 |
Hardness | 58-62 |
Requirement | customerize |
after-sales service | engneers available to service rollers overseas |
Mould style
| Breakdown/forming rolls,Fin pass rolls, Welding rolls,Sizing rolls,Turk’s head rolls |
Produced Pipe Shape and size
| round steel pipe:Φ8(mm)-Φ711(mm) square steel pipe: can be as large as 550*550(mm) cold roll forming pipe: U-shape W-shape Z-shape steel sheet pile, color coil, section bar and so on |
Product Features
- Pipe mould: steel tube, plum tube, flat tube, oval tube, fan-shaped tube, polygonal tube, single and double groove pipe, tube frame, special-shaped mould, etc.
- Selection: To produce first-class pipe mould, we must have first-class raw material. We choose hign-quality tool steel Cr12mov as raw materials, mouild steel Cr12mov material set high wear resistance, toughness, resistance to high pressure, high hardness, hard quenching.
- Maching process: Raw materials- materials testing- exercise- saws- turning- drilling- turning- CNC precision turning- grinding- quenching- hardness test- internal and external grinding- test- boxing.
- Features: Mature manufacturing process, experience and standard production management achievements leading provider of technology per crown. CNC machining of Japan, high precise; 10 years experience in RD, the fingerprints, mechanical pattern, on the corner, concave angle phenomena, and to form tolerance of roundness in les than 0.05mm, square tube on the angle does not exceed ±05mm.
