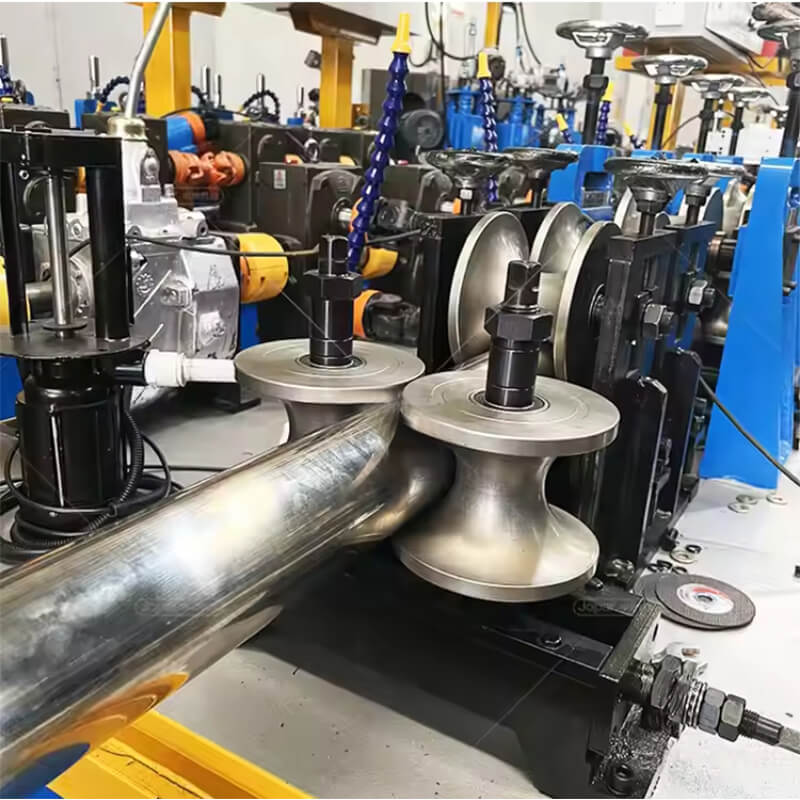

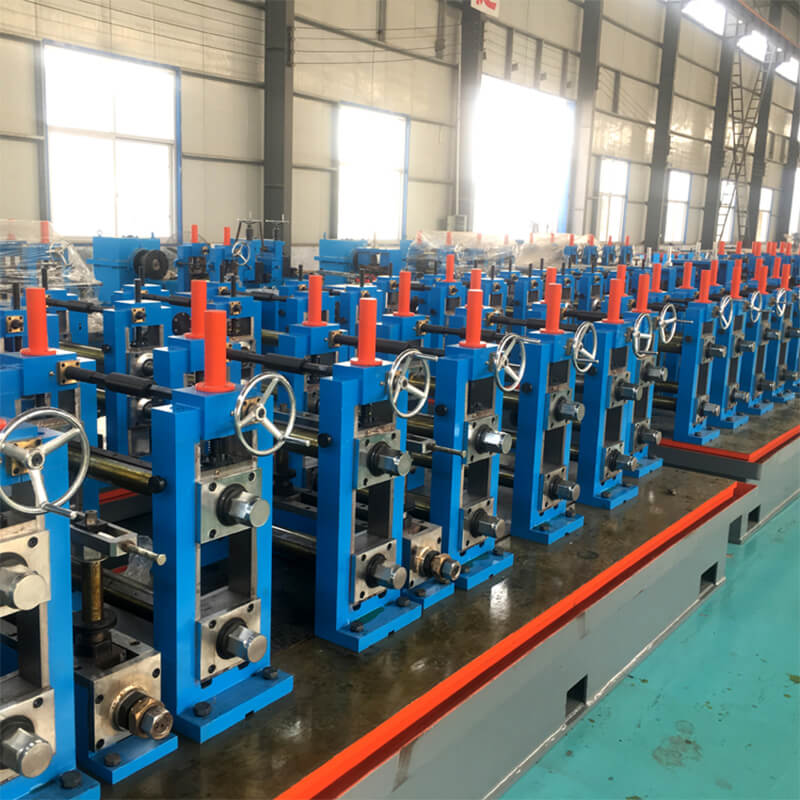

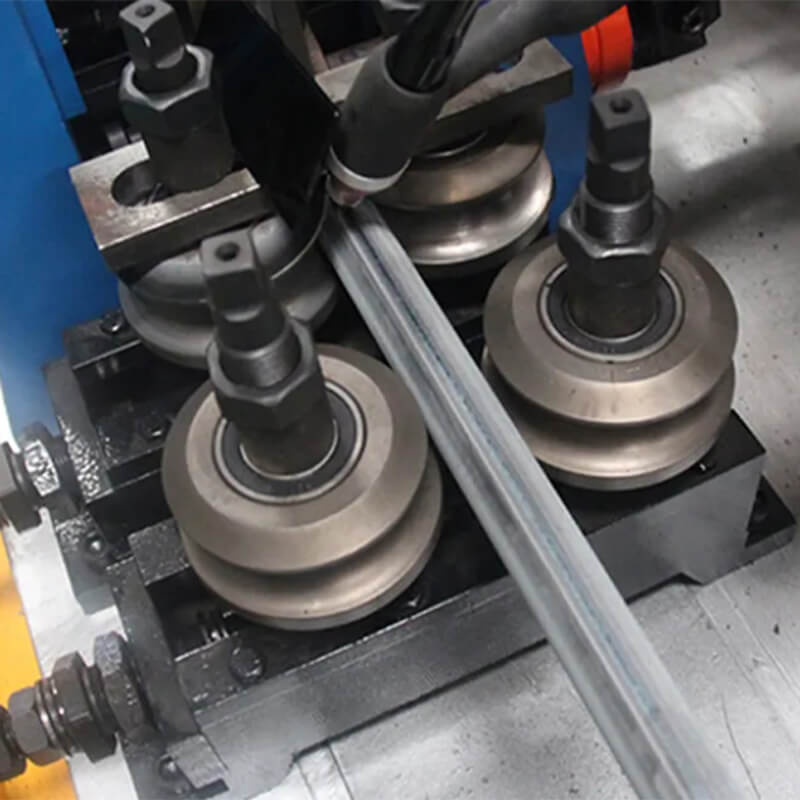

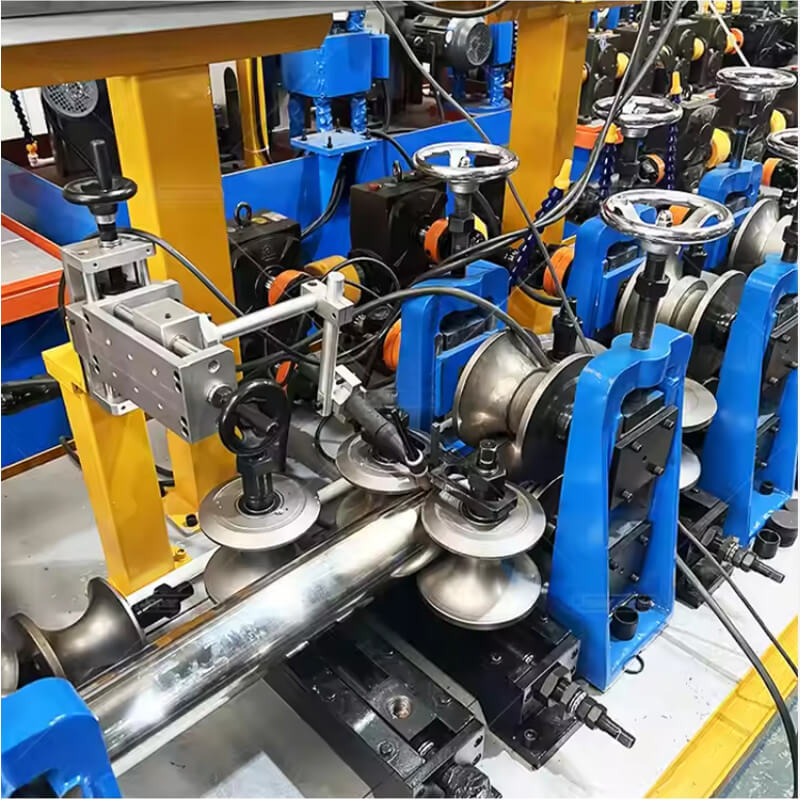

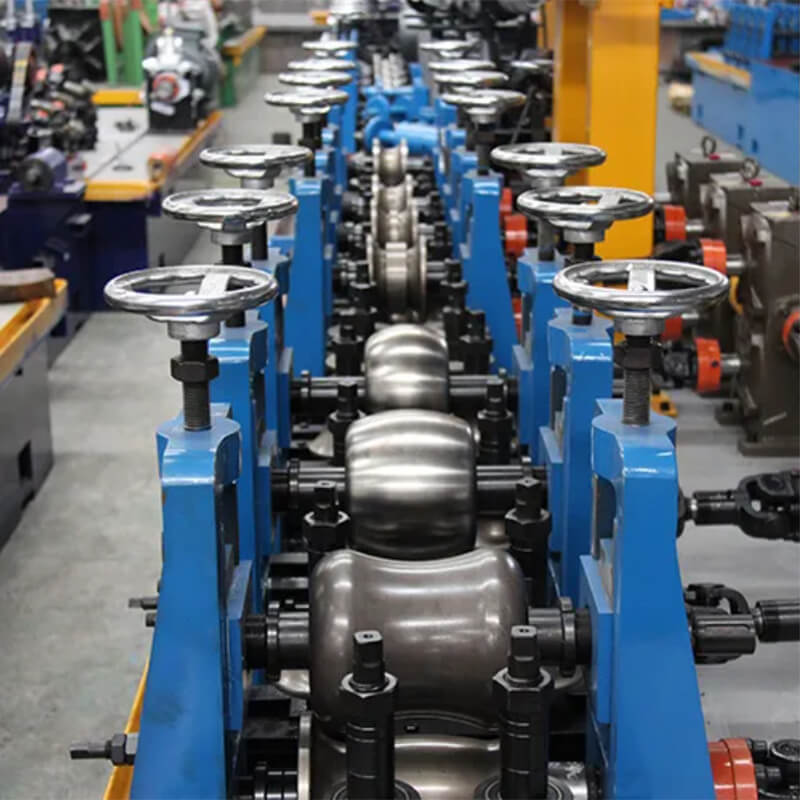

Main Technical Parameters of Tube Mill Production Line
- A: Suitable Strip Coils
- Suitable Material:Carbon steel Coil
- Alloy Steel Coil:API5L X42-X80
- Suitable strip width range: 13mm-2261mm
- Wall Thickness:0.2mm-22mm
- B: Finished products
- Pipe 0.D.p4mm-p720mm
- Thickness: 0.2mm-22mm
- Square tube: 6mmx6mm-600mmx600mm,thickness: 0.3mm-22mm
- Length: 6m-12m
- Length tolerance:+/-3mm.
- A: Suitable Strip Coils
- Suitable Material:Carbon steel Coil
- Alloy Steel Coil:API5L X42-X80
- Suitable strip width range: 13mm-2261mm
- Wall Thickness:0.2mm-22mm
- B: Finished products
- Pipe 0.D.p4mm-p720mm
- Thickness: 0.2mm-22mm
- Square tube: 6mmx6mm-600mmx600mm,thickness: 0.3mm-22mm
- Length: 6m-12m
- Length tolerance:+/-3mm.
- Specification of Tube Mill Production Line
Machine Condition | Fully New, A-Grade quality |
Size | As requests |
Power Supply | 220V/380V/415V/460V/480V,50/60Hz,3P(as requests) |
Equipment Weight | About 30ton-300ton |
Dimension | 40m-400m(length)x3.8m-40m(width) |
LOADING SIZE | 40’containers |
Equipment Color | normally Blue/Green/White, or as requests |
Packing | Standard and careful export packing |
- A: Suitable Strip Coils
Model | Round Pipe | Square Pipe | Thickness | Speed |
mm | mm | mm | m/min | |
12 | Ф4-Ф12 |
| 0.2-0.5 | 120 |
16 | Ф6-Ф16 |
| 0.2-0.8 | 120 |
20 | Ф8-Ф20 | 6×6-15×15 | 0.3-1.0 | 120 |
25 | Ф10-Ф25 | 7×7-19×19 | 0.3-1.5 | 120 |
32 | Ф12-Ф32 | 9×9-25×25 | 0.5-2.0 | 120 |
50 | Ф20-Ф50 | 15×15-39×39 | 0.8-3.0 | 120 |
76 | Ф32-Ф76 | 25×25-59×59 | 1.2-4.0 | 120 |
89 | Ф42-Ф89 | 35×35-70×70 | 1.5-4.5 | 110 |
114 | Ф48-Ф114 | 40×40-90×90 | 1.5-4.5 | 70 |
140 | Ф60-Ф140 | 50×50-110×110 | 2.0-5.0 | 60 |
165 | Ф70-Ф165 | 60×60-130×130 | 2.0-6.0 | 55 |
219 | Ф89-Ф219 | 70×70-170×170 | 2.0-8.0 | 50 |
273 | Ф114-Ф273 | 90×90-210×210 | 3.0-10.0 | 45 |
Since all hydraulic pipes, and water pipes, electrical wires are buried underground, the working ground is clean and easy for operator to work. It is also equipped safety fences at horizontal accumulator, sensors at hot cutting saw which provide the highest safety working place for the operator.
* The design was applied new horizontal accumulator which can store more steel strips and reduce the folding or broken steel trips comparing with vertical accumulator. Thanks to this horizontal accumulator, the machine operates stably and highly efficient.
* The programing logic control system PLC combines with smart touch screen HMI which operator can monitor the slitting machine easily.
* The highly automatic operation brings client the high productivity..
